Outline Dimension (m): 10.3x3.1x2.85
Total Weight (t): About 48
Installed Power (kW): 252
Conveying Capacity (t/h): 1200
Adaptive Tunnel Height (m): 3.0~4.5
Walking Speed (m/min) : 0~10
Conveying Power (kW): 45
Crushing Power (kW): 75
Number of Drilling Arms: Standard Models are equipped with 3 Top and 2 Side Bolting
Ground Pressure (MPa): 0.16

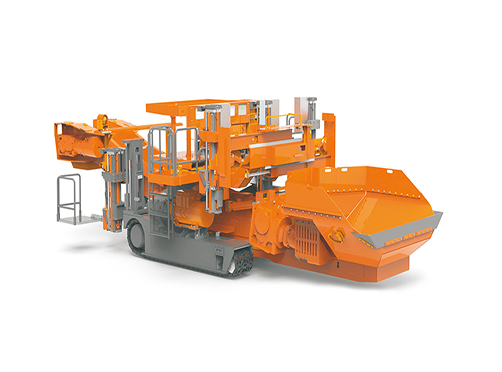

ntegrate walking, rock bolting, transporting, and crushing functions.
Optional configuration of 2/3/4 sets of top bolting+2/4 sets of side bolting.
Adopt a large capacity buffering feeding hopper, the feeding hopper and the conveyor can slide forward and backward relative to the chassis. During the rock bolting process, the machine body remains still and maintains overlap with the bolter roadheader and conveyor.
Adopts electro-hydraulic control system when drilling, with one-click operation for drilling and anchoring.
The machine is integrated with a dust-removal air duct, which is softly connected to the dust-removal air duct of the bolter miner and bridge-type transfer machine, achieving post-installation of dust removal equipment and “long pressure and short extraction” ventilation and dust removal in the working face.
